DDPAI Z60 - The world's most advanced triple car camera

Product Overview

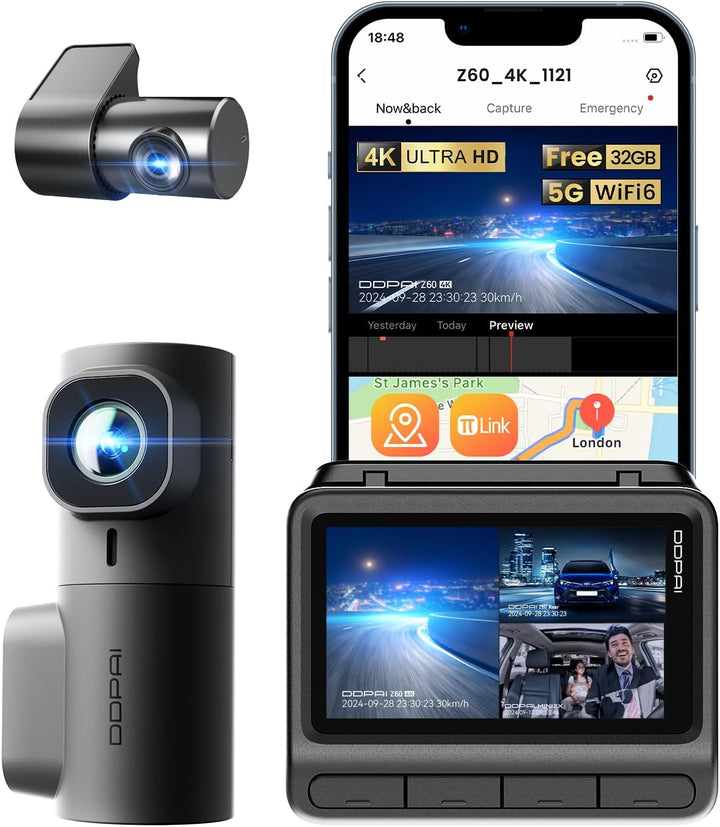

The DDPAI Z60 represents the pinnacle of automotive camera technology, combining cutting-edge technology with a sleek design to provide comprehensive 360-degree protection for your vehicle. This revolutionary three-camera system redefines in-car security and surveillance, making it the ideal choice for drivers who demand nothing less than the best.

With DDPAI's exclusive πLink technology, three different cameras (front, rear, and interior) can be linked into a single integrated system, providing complete coverage of all angles of the vehicle. This innovative design ensures that no important detail is missed, whether you're driving on busy city streets or highways.

Key Features

🎥 Ultra HD recording with three channels

•Front camera: 4K Ultra HD (3840×2160) recording at 30 frames per second

• Rear camera: Full HD 1080P (1920×1080) recording for rear surveillance

• Interior camera: 2K (2560×1440) recording for in-car monitoring (optional)

🔗 Revolutionary πLink technology

Exclusive camera linking technology allows you to connect three different cameras into a single integrated system, with all cameras controllable from a single 3-inch screen. This technology eliminates the need for complex cabling and provides a simplified installation experience.

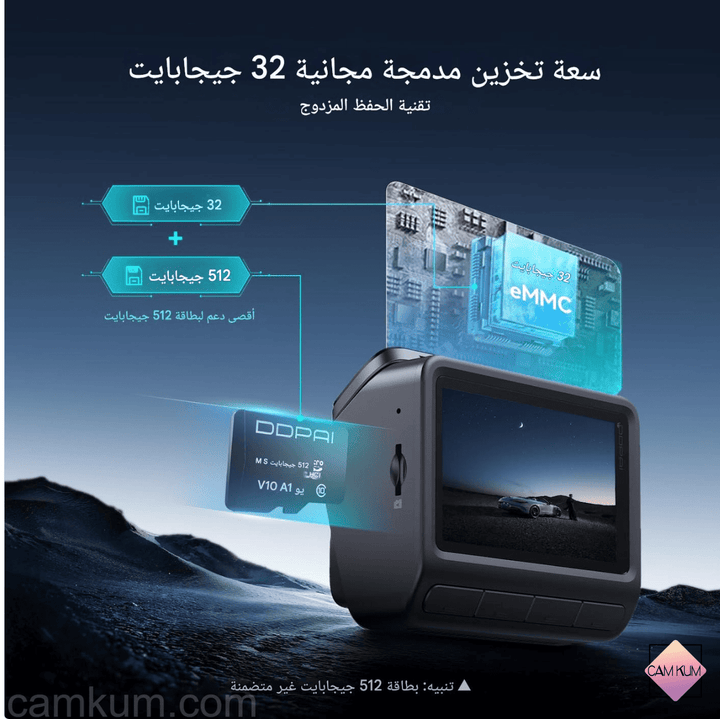

💾 Advanced dual storage system

• Built-in eMMC memory: 32GB for important recordings and backups

• External expansion: Supports memory cards up to 512GB

• Data protection: Dual storage system ensures that important recordings are not lost

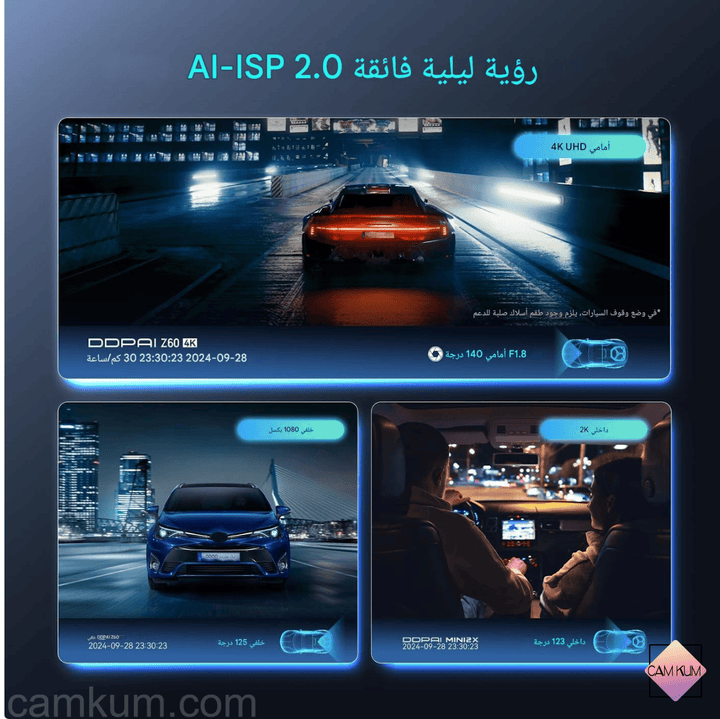

🌙 NightVIS 2.0 Night Vision Technology

An advanced AI-ISP processor improves recording quality in low-light conditions, with a wide F1.8 aperture for the front camera and F2.0 for the rear, ensuring clear recordings even on the darkest nights.

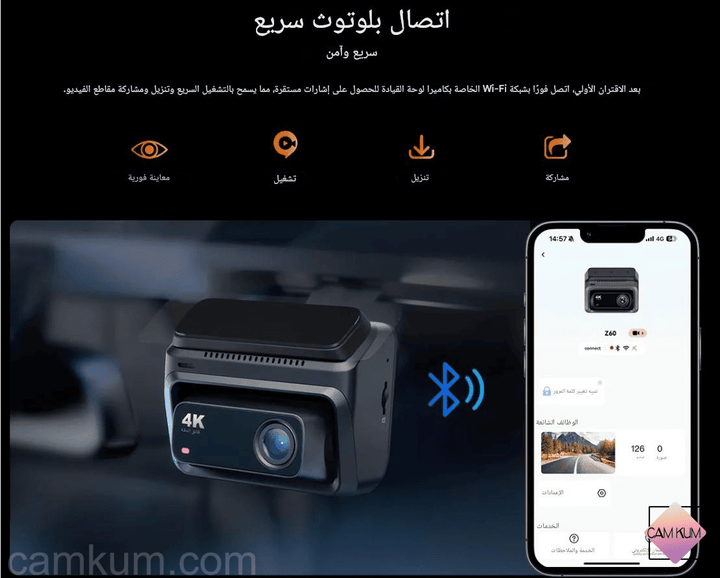

📶 Smart multi-way connectivity

• 5GHz WiFi: Fast data transfer speeds up to 15MB/s

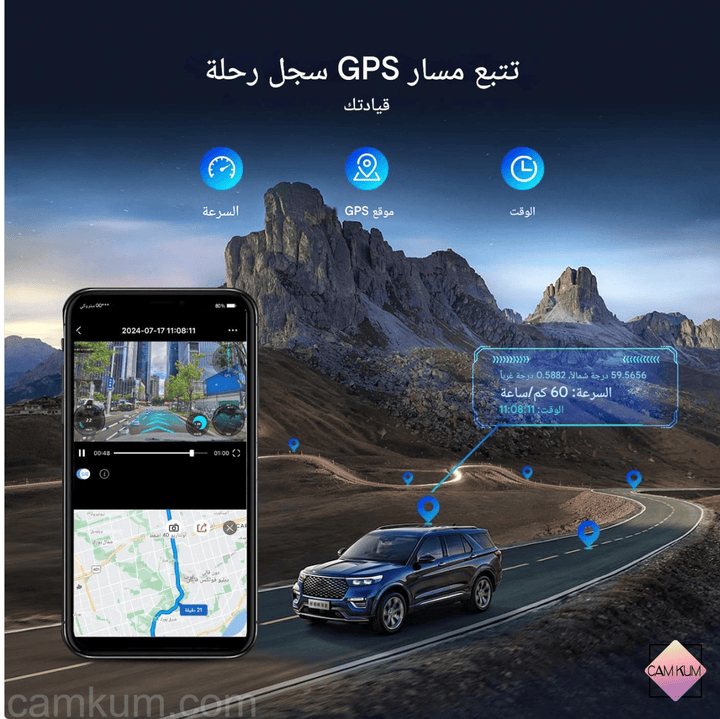

• Built-in GPS: Tracks location and speed with timestamps

• Bluetooth: Seamless connection with smartphones

🛡️ ADAS Advanced Safety System

• Lane Departure Warning (LDWS): Warns in case of unintentional lane departure

• Forward Collision Warning (FCWS): Warns of dangerously approaching vehicles

• Blind spot monitoring: Smart alerts for unseen areas

•Speed ​​alert: Warnings when exceeding the permitted limits

🔋 24/7 Parking Monitoring

Low-power monitoring operates 24/7 to protect your vehicle even when parked, with intelligent motion and vibration detection, and advanced protection against battery drain. Parking cables are sold separately.

Full technical specifications

Registration specifications

Specifications: Front Camera, Rear Camera, Indoor Camera; Resolution: 4K (3840×2160), 1080P (1920×1080), 2K (2560×1440); Frame Rate: 30 FPS, 30 FPS, 30 FPS; Aperture: F1.8, F2.0, F2.0; Angle of View: 140°, 140°, 130°; Sensor: Sony IMX415, Sony IMX307, Sony IMX335

Device specifications

•Screen: 3-inch IPS LCD high-resolution display

•Processor: Hisilicon Hi3559A Quad-core

• Operating system: Performance-optimized custom Linux

• Operating temperature: -20°C to +70°C

•Humidity: 15% - 85% RH

• Dimensions: 95×60×35 mm (main unit)

• Weight: 180 grams (without cables)

Power and connection options

• Power input: DC 5V/2A

•Power consumption: 8W (normal operation) / 0.5W (standby mode)

•Power cable: 12V standard car outlet

• OBD cable: For continuous power and parking monitoring

• USB-C cable: for charging and updates

Benefits and competitive advantages

Comprehensive protection for your investment

Your car is a valuable investment that deserves the best possible protection. DDPAI Z60 provides 360-degree coverage, ensuring that any accident, theft attempt, or vandalism is recorded from any angle. This comprehensive protection not only safeguards your vehicle but also your insurance record, saving you thousands of riyals in the event of disputed claims.

irrefutable legal evidence

In an increasingly complex legal world, visual evidence is becoming a necessity, not a luxury. DDPAI Z60 high-definition recordings are legally admissible in all Saudi courts, providing clear and indisputable evidence in cases of accidents or traffic violations.

Peace of mind for the family

When you're driving or your family members are driving, the DDPAI Z60 provides invaluable peace of mind. Its remote monitoring feature lets you keep track of your vehicle and loved ones in real time, while instant emergency alerts ensure you can intervene quickly when needed.

Savings in insurance costs

Diverse use cases

For the average driver

• Accident protection: Automatic recording of any accident with detailed information

• Parking monitoring: Protecting the vehicle in public parking lots and streets

• Improving leadership: Reviewing and improving leadership style

•Travel Memories: Recording beautiful trips and landscapes

For the professional driver

• Legal protection: Clear evidence in cases of disputes with clients

• Performance monitoring: Evaluating driver performance and improving service

• Passenger safety: Monitoring passenger behavior and ensuring safety

• Fleet management: Centralized monitoring of all vehicles

For business owners

• Asset protection: Comprehensive monitoring of the company's fleet

• Cost reduction: Lowering insurance and maintenance costs

• Improving efficiency: Monitoring vehicle use and improving roads

• Legal compliance: Ensuring adherence to traffic and safety laws

Installation and setup

Simplified installation process

The DDPAI Z60 is designed for easy installation, even for non-specialist users. The process takes less than an hour and requires no permanent modifications to the vehicle.

Basic installation steps:

1. Mounting the main unit: Behind the rearview mirror using the magnetic base

2. Rear camera connection: A long 6-meter cable passes through the car's cavities.

3. Power connection: Standard 12V port or OBD cable for continuous power

4. App setup: Download the DDPAI app and connect the device via WiFi

Smart Setup

The free app guides you step-by-step through the setup process, with smart settings that automatically adapt to your car type and driving style. The system learns from your habits and gradually improves its performance to provide the best possible experience.
